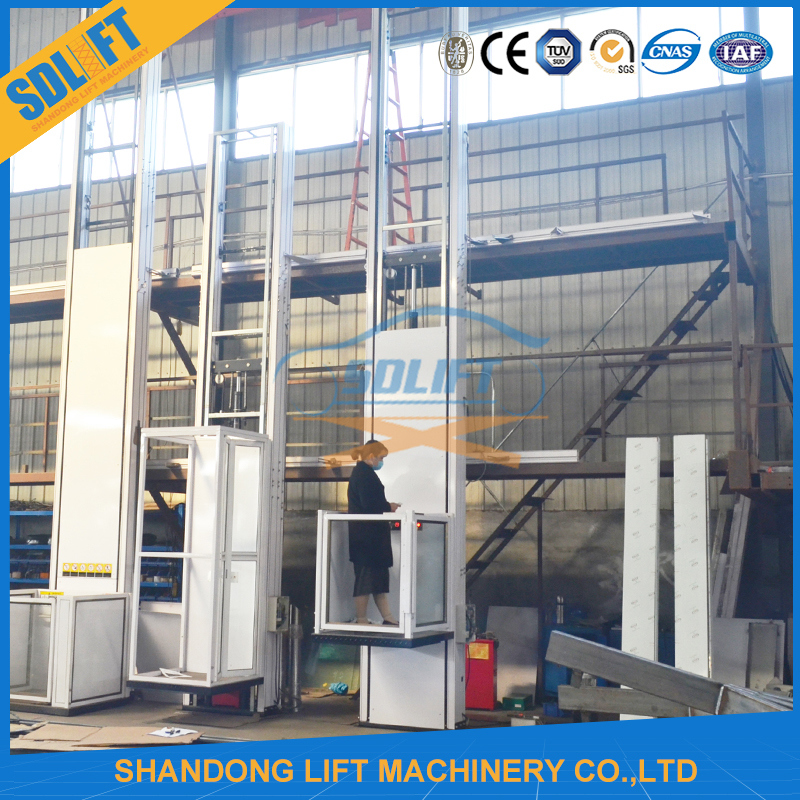

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home

Name: 1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home
Brand: Shandong Lift Machinery Co.,Ltd
SKU: SJGL0.25-6
Price: 5,840.00 USD
Availability: InStock

Rincian produk

Tempat asal: CINA

Nama merek: SDLIFT

Sertifikasi: CE, ISO9001, SGS

Nomor model: SJGL0.25-6

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1unit

Harga: US3880- USD7800 / UNIT

Kemasan rincian: Kasus besi atau telanjang

Waktu pengiriman: 20 hari kerja

Menyediakan kemampuan: 1200 unit per tahun

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                home wheelchair platform lift, disabled elevator lift for wheelchair, 1-9m wheelchair lift for home


Aplikasi:	Disabled Stair Lift Lift kursi roda platform lift untuk rumah	Tinggi pengangkat:	6m
Kapasitas:	250kg	Daya Angkat:	220v/50hz/1ph/2.2kw
Pintu kaca:	2pcs pintu kaca	Sertifikat:	CE, ISO9001

Aplikasi:	Disabled Stair Lift Lift kursi roda platform lift untuk rumah
Tinggi pengangkat:	6m
Kapasitas:	250kg
Daya Angkat:	220v/50hz/1ph/2.2kw
Pintu kaca:	2pcs pintu kaca
Sertifikat:	CE, ISO9001

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home:

It is a device to transport wheelchair or people from one floor to another. It allows user to move freely within a multi-floored building and applicable to hotels , households,shopping malls and hospitals etc.

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 0

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 1

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 2

Main Parts

Small Home Lift

Floor control column	It is fixed on the ground and upper floor for the user easy operation with “UP”, “Down” and E-Stop button
Control Panel	Apart from “UP”, “Down” and E-Stop button on it, there is still with keys, when no use, we can lock the lift
Remote control	User can control the platform by remote controls
Drive tower	The platform will go up by climing the drive tower, it contains pump station, hydraulic cylinder etc.
Handrail	When the users enter into the platform, they can hold on it for safety when lifting up and down
Automatic ramp	When the platform off the ground, it will fold up automatically to ensure the users safety

Safety Device

Small Home Lift

Safety Interlock	Lock the platform when the vertical platform lift encounters an emergency
Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation
Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod
Auto-flap	The small ramp will turn up while lifting
Aluminum with tempered glass enclosure can be added per actual need.

Specification:

Mechanical platform lock

It is a double safe design to protect people on platform

Emergency down button

The platform can be lowered by manual down button in case of power failure

Safety sensor on the platform bottom

The lift will be stopped at once if it touches any obstacles when going down, especially to protect the children if he enter accidentally.

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 6

Electromagnetic lock of the platform door

Interlocking: The lift won’t work if the door is open, it can only rise when the door is completely closed.

Electromagnetic lock: The door won’t be opened during the rising process.

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 7

Three calling and control type

(platform control, remote control, post control)

You can control the wheelchair lift at any place.

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 8

1-9m Personal Disabled Elevator Wheelchair Platform Lift For Home 10

Model list:

MODEL	Lifting height	Platform size	Load capacity	Total dimention	Self weight
SJGL0.25-1	1000mm	1430*900mm	250kg	190014301200mm	350kg
SJGL0.25-2	2000mm	1430*900mm	250kg	290014301200mm	550kg
SJGL0.25-3	3000mm	1430*900mm	250kg	390014301200mm	780kg
SJGL0.25-3.5	3500mm	1430*900mm	250kg	440014301200mm	850kg
SJGL0.25-4	4000mm	1430*900mm	250kg	490014301200mm	880kg
SJGL0.25-4.5	4500mm	1430*900mm	250kg	540014301200mm	950kg
SJGL0.25-5	5000mm	1430*900mm	250kg	590014301200mm	1000kg
SJGL0.25-5.5	5500mm	1430*900mm	250kg	640014301200mm	1050kg
SJGL0.25-6	6000mm	1430*900mm	250kg	690014301200mm	1100kg
