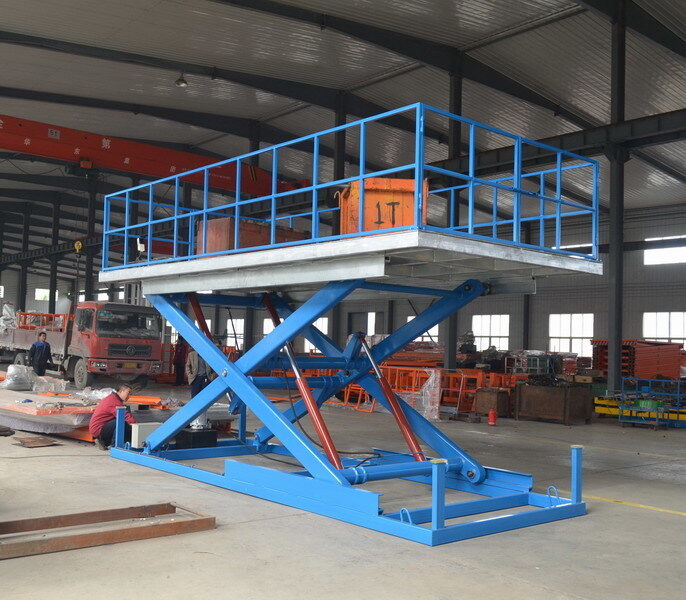

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table

Name: Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table
Brand: Shandong Lift Machinery Co.,Ltd
SKU: SJG2.5-3
Price: 8,800.00 USD
Availability: InStock

Rincian produk

Tempat asal: Cina

Nama merek: SDLIFT Or OEM

Sertifikasi: CE ISO SGS

Nomor model: SJG2.5-3

Syarat Pembayaran & Pengiriman

Kuantitas min Order: 1 buah

Harga: USD7800- USD9800 / UNIT

Kemasan rincian: Kotak besi atau paket kotak kayu lapis

Waktu pengiriman: 30 hari

Syarat-syarat pembayaran: T/T

Menyediakan kemampuan: 1200 unit per tahun

Dapatkan Harga Terbaik

Rincian produk

Deskripsi Produk

Menyoroti:
                                                                                                                                                                                                                                                                                                                                                                                hydraulic scissor car lift, underground garage parking lift, car elevator lift table


Beban berat:	2500kg (sesuai permintaan)	voltase:	208v/220v/240v/380v/415v/440v
Keuntungan:	Menghemat lebih banyak tempat	Angkat kecepatan:	3-5m/mnt
Tinggi angkat:	3m (sesuai permintaan)	Tinggi min:	0.75M
Sistem Angkat:	Sistem Hidrolik + Motor	Perangkat Angkat:	Silinder Hidrolik
Pagar Pengaman:	4 sisi	Perangkat Keamanan:	klep penguncian tahan ledakan, darurat

Beban berat:	2500kg (sesuai permintaan)
voltase:	208v/220v/240v/380v/415v/440v
Keuntungan:	Menghemat lebih banyak tempat
Angkat kecepatan:	3-5m/mnt
Tinggi angkat:	3m (sesuai permintaan)
Tinggi min:	0.75M
Sistem Angkat:	Sistem Hidrolik + Motor
Perangkat Angkat:	Silinder Hidrolik
Pagar Pengaman:	4 sisi
Perangkat Keamanan:	klep penguncian tahan ledakan, darurat

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table

Product Description

The scissor car lift is an ideal car lift solution for fast and easy access underground garage.

Installed to replace an access ramp on private property, double deck scissor lifts are specially used for day to day residential application

as a solution for maximizing available space, storing automobiles, and providing security for exclusive and/or seasonal vehicles.

It’s also perfect for commercial parking operations looking to maximize their overall vehicle capacity.

Parameters:

load capacity : 2500kgs
platform size : 5.2m x 2.6m
travel height : 3m
structure : high-strength Manganese steel
power : 380v/3ph/50hz/5.5kw
Installation : underground , into a pit

Model list

Model	load capacity	Platform size	Lift height	Pit depth	Power
SJG2.5-3	2.5T	5.2m×2.6m	3m	750mm	220v, 240v,380v or 400v
SJG2-6.5	2T	5.2m×2.8m	6.5m	800mm	220v, 240v,380v or 400v
SJG2.5-3.5	2.5T	5.2m×2.6m	3.5m	800mm	220v, 240v,380v or 400v
SJG2.5-5	2.5T	5.6m×3m	5m	800mm	220v, 240v,380v or 400v
SJG3-2.5	3T	5m×2.3m	2.5m	750mm	220v, 240v,380v or 400v
SJG3-3	3T	5.2m×2.6m	3m	800mm	220v, 240v,380v or 400v
SJG3-3.5	3T	5.6m×2.7m	3.5m	800mm	220v, 240v,380v or 400v
SJG5-10	5T	4.5m×2.5m	10m	1150mm	220v, 240v,380v or 400v
SJG8-2.5	8T	6.5m×4.5m	2.5m	850mm	220v, 240v,380v or 400v
SJG12-3	12T	5.5m×2.8m	3m	950mm	220v, 240v,380v or 400v
SJG15-4.5	15T	8m×2.2m	4.5m	1150mm	220v, 240v,380v or 400v
SJG20-5	20T	6m×3m	5m	1200mm	220v, 240v,380v or 400v

Advantages

Save space : the scissor automotive lift consumes no space when not in use, it’s an ideal option for small work spaces as well as large.
Safe: explosion-proof lock valve to avoid a sudden drop if emergency occurs.
The lift is fitted with protective side barriers to secure the car during elevation and descent.
Each car lift comes equipped with handrails, a kick plate, and a barrier chain across each end.
The platform is equipped with overload alarm and partial load protection device to ensure the safe lifting of the platform
The hydraulic system is equipped with an explosion-proof valve to prevent the platform from falling due to rupture of the oil cylinder
Manual lowering device after power failure
Scissor arms are made of high-strength manganese steel: high strength, no deformation, to ensure long-term safety

Production showing:

Packing:

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table 4

Certificates:

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table 6

Customers visiting:

Underground Garage Car Elevator Lift Hydraulic Scissor Car Parking Lift Table 7

Contact us:

Joyce Zhang
-------------------------------------------
Shandong Lift Machinery Co., Ltd.
Tel: 86-531-85882730 Fax: 86-531-62321282
Mobile/wechat: 86-15953178102
Mail: sale01@shandonglift.com
http: www.scissorslifttable.com
-------------------------------------------
